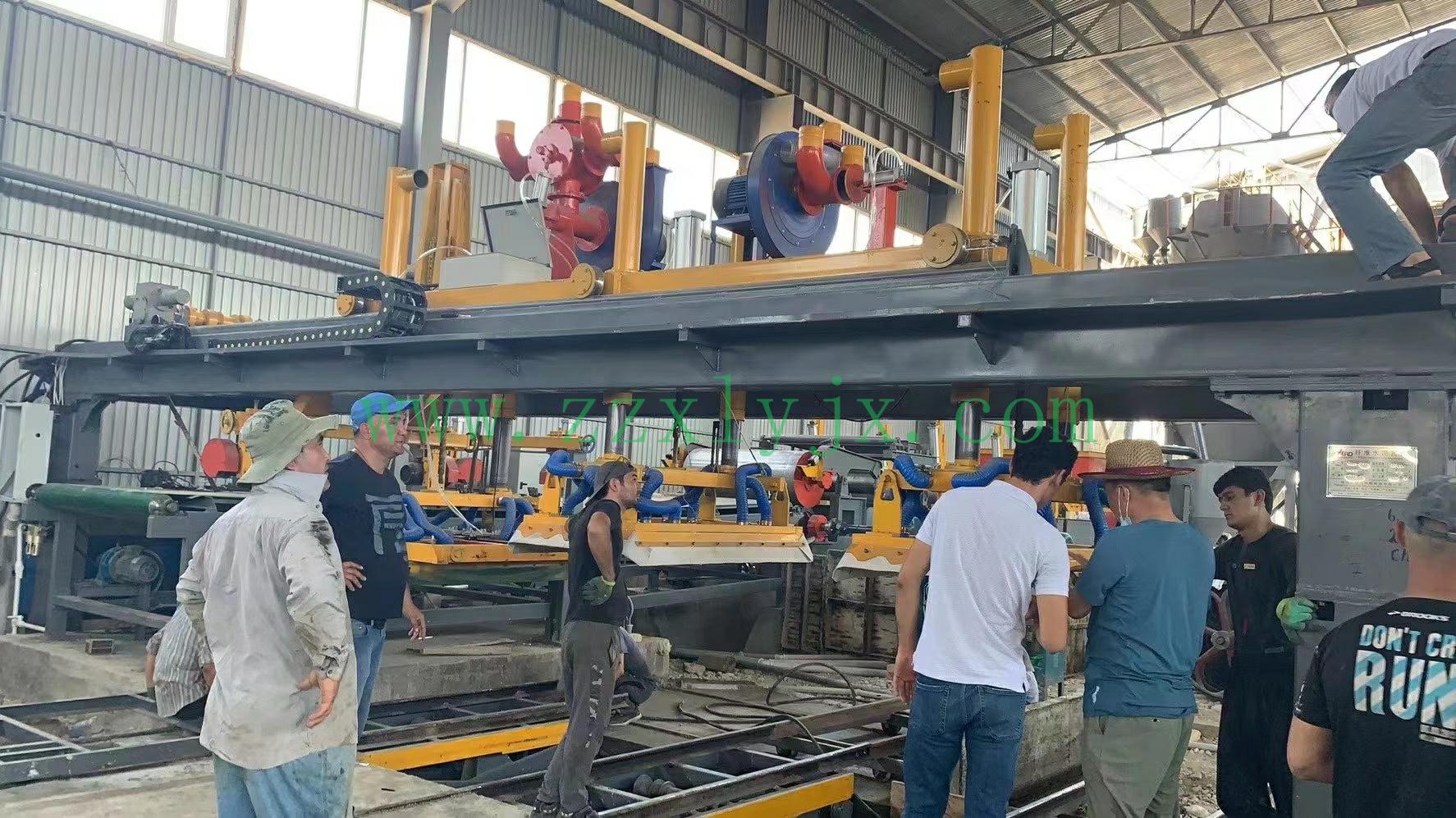

Fiber cement tile production line equipment
Asbestos tile equipment process:
Raw material → bucket elevator → wheel grinding mixer → quantitative feeding mixer → molded asbestos tile forming machine → cement tile maintenance pallet → maintenance pallet truck → maintenance → manual manual spraying machine or automatic spraying → finished product
Features of asbestos tile equipment:
1. The molding speed is fast and the output is large. The PLC programmable controller is used, automatic control, man-machine interface, and the performance is more reliable. Easy to operate. Fully hydraulic and pneumatic, the production speed is up to 8 pieces/min, the yield is high, and the cost performance is higher.
2. Using mortar concrete to be molded by filter press, the product has perfect structure, many varieties, high density, high strength and accurate size, which can meet the needs of various buildings and is a high-quality concrete product.
3. One machine is multi-purpose. The machine can produce all kinds of main tiles, ridge tiles, edge tiles, drainage tiles, etc. by changing the mold, and can also produce all kinds of high-grade colored floor tiles, such as terrazzo tiles, polished shot-peened tiles, washed floor tiles, etc.
Advantages of asbestos tile equipment:
1. The total power of the machine is 7.75KW, saving electricity;
2. The entire production process - from feeding raw materials to sending out formed bricks and tiles, it is controlled by program and realized automatically, without manual operation, only the workers need to take away the bricks and tiles that are automatically sent to the blank pick-up table. , it is no longer necessary to take tiles from the tile mold, which solves the problem that the tile pressing machine crushes the fingers of the operator, which is safe and worry-free;
3. The output is more than double that of the general tile press. Such as pressing flat tiles, it can produce about 1500 pieces per hour, so it is highly efficient;
4. Automatically apply mold release oil to save fuel;
5. The tile blank does not need manual trimming, and it is directly put on the shelf, without the need for watts, saving money;
6. The whole machine is produced, one person cuts the material, and two people pick up the blanks, with few people, low labor intensity, and labor saving;
7. Press bricks and tiles to reduce the drying sensitivity of the green body, reduce product breakage loss, and increase economic benefits;
8. Brick and tile products, smooth, clean, beautiful and generous, are popular with users and make more money;
9. By replacing the corresponding mold, bricks and tiles of different varieties and specifications can be produced, such as: square bricks, face bricks, ancient building bricks, flat tiles, hanging tiles, bow tiles, slab tiles, barrel tiles, tri-curved tiles, ridge tiles, trench tiles And so on, to achieve multi-function. Users can do whatever the market needs, not afraid of big changes in the market, and strong anti-risk ability. 10. Parameters: Power: 7.75Kw Theoretical class output: 370×242×13 flat tile 12000 pieces Φ120×9×200+30 tube tile 22000 pieces 400×400×60 4000 pieces.
